Model No.: EWX9500F
Jenama: PESANAN OEM BOLEH DITERIMA
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Voltan: 24V, 12V
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
EWX9500F

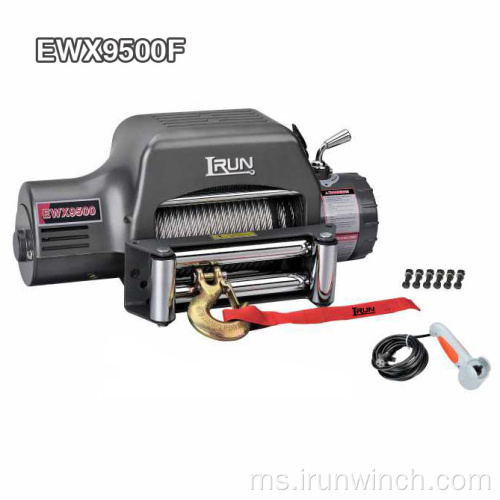

Barang No. EWX9500F ialah Win Pemulihan Elektrik seberat 9500 lbs dengan kotak kawalan gaya berdiri. Ia merupakan ciri unggul Siri Winch Pemulihan EWX seperti kecekapan sempurna, tarikan yang stabil dan reka bentuk yang padat. Win Siri ini mempunyai reka bentuk paten sendiri pengurang gear planet tiga peringkat yang menjadikan kecekapan penghantaran melampau dan operasi keselamatan yang boleh dipercayai.
Ciri-ciri:
1. gear pengurang keluli penuh
2. paten pengurang gear planet tiga peringkat
3. Klac kili percuma
4. Tindakan brek kon skru automatik
5. Motor Luka Siri Pendek
6. Pemacu kuasa DC 12V atau DC 24V pilihan
7. Alat kawalan jauh melalui kotak kawalan dan suis
8. Kawalan jauh wayarles tersedia jenis F tetap dalam kotak kawalan
9. SWR tensioner tersedia
EWX9500
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series Wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
| 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 39.4(12.0) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) |
| 6000(2722) | 9.8(3.0) | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) |
| 9500(4309) | 6.2(1.9) | 9.5(2.9) | 380 | 270 | |||
| ITEM | EWX9500U | EWX9500S | EWX9500F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 80.7 | 81.7 | 86.5 |
| (kgs) | 36.6 | 37.1 | 39.2 |

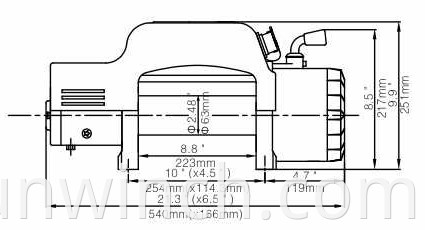

Dimensi Keseluruhan： 21.3″ x 6.5″ x 9.9″
(L x W x T) 540mm x 166mm x 251mm
Berat Bersih： 39.2 KGS
Kategori produk : Win Elektrik > Win Pemulihan
