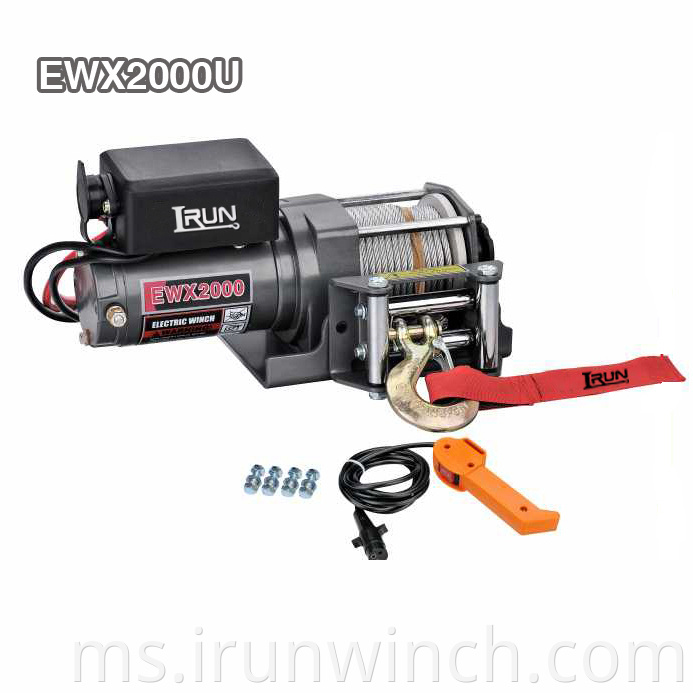

Model No.: EWX2000U
Jenama: Pesanan OEM boleh diterima
Tempat Asal: China
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Pembungkusan: Karton eksport
Pengangkutan: Ocean,Air
Tempat asal: China
Port: Shanghai,Ningbo
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Ciri -ciri:
1.) Peralatan pengurangan keluli penuh
2) Tindakan brek automatik
3.) klac spooling percuma
4.) DC 12V atau DC 24V Power Drive Pilihan
5.) Kawalan suis kerja semasa yang tinggi secara langsung
6.) Kawalan suis ATV Handlebar
7.) Kawalan Kotak Penetapan Dilepaskan Pilihan
8.) Kawalan Kotak Memisahkan Memperbaiki Pilihan
9.) Kawalan jauh melalui kotak CONTORL dan suis
10.) Kawalan Remoto Wireless Avilable
EWX2000
| SPECIFICATION | |
| Rated line pull | 2000 lbs (907 kgs) |
| Motor: permanent magnet | 12V:Input: 1.7kW / 2.3hp; Output: 0.6kW / 0.8hp |
| 24V:Input: 1.9kW / 2.6hp; Output: 0.7kW / 0.9hp | |
| Gear reduction ratio | 153:1 |
| Cable (Dia.× L) | Ø5/32″×49′(Ø4mm×15m) |
| Drum size (Dia.× L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||

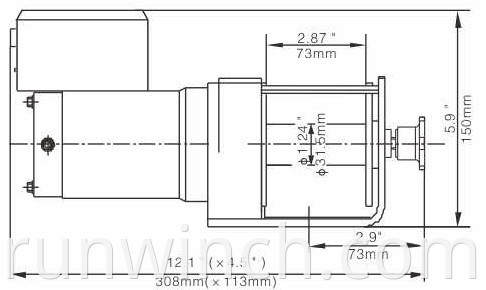

| ITEM | EWX2000D | EWX2000A | EWX2000U |
| Overall dimensions | 11.5″×4.5″×4.3″ | 11.5″×4.5″×4.3″ | 12.1″×4.5″×5.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 17.8 | 18.6 | 18.4 |
| (kgs) | 8.1 | 8.5 | 8.4 |

Dimensi Keseluruhan: 12.1 "x4.5" x5.9 ″
(LXWXH) 308x113x150mm
Berat bersih: 8.4kgs

Kategori produk : Win Atv Dan Utv > Atv Winch
