Model No.: EWX4500D
Jenama: TEMPAHAN OEM BOLEH DITERIMA
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Voltan: 24V, 12V
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

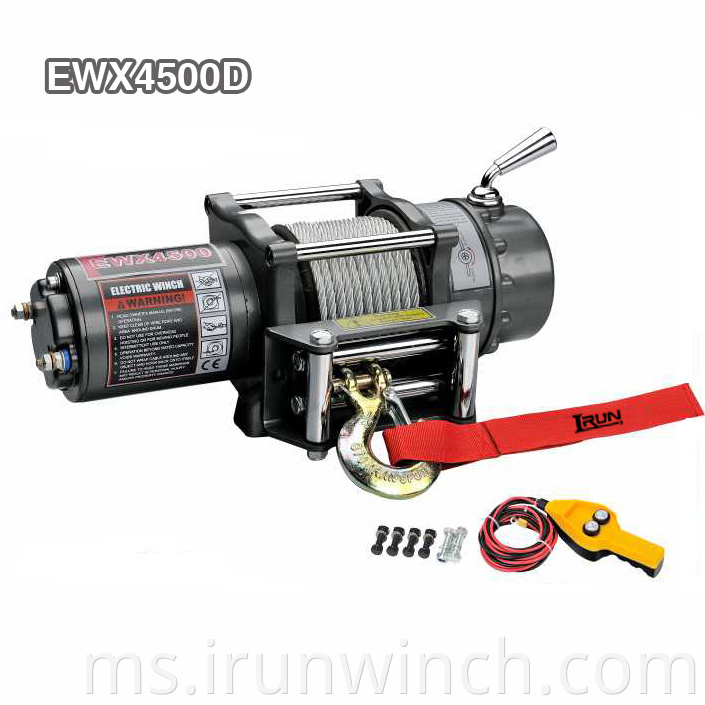

Model win ATV 4500 paun EWX4500D.
Transformasi daripada win 3000Lb kepada UTV 4500 paunwinch menggerakkan keupayaan win daripada hanya super kepada keupayaan mega. Model EWX4500D mempunyai berat kira-kira 12.6 KG dan panjangnya lebih kurang 15 inci. Walaupun masih kecil dan ringan, win boleh bergerak sehingga 2041KG beban. Ini menjadikannya [anak besar" semasa dalam menggerakkan beban berat.
Ia sebagai Win UTV kalis air, mempunyai jangka hayat yang lebih lama jika dibandingkan dengan win lain kerana ia mampu menahan karat. Jika anda benar-benar ingin mengalihkan beban berat, win ATV 4500 paun adalah penyelesaian anda.
Ciri-ciri:
EWX4500
| SPECIFICATION |
|
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet | 12V:Input: 2.4 kW/ 3.2hp; Output: 1.0 kW/ 1.3hp |
|
|
24V:Input: 2.9 kW / 3.9hp; Output: 1.3kW / 1.7hp |
| Gear reduction ratio | 172:1 |
| Cable (Dia.× L) | Ø15/64″×47.6′ (Ø6.0mm×14.5m) |
| Drum size (Dia.× L) | Ø1.77″×3.8″ (Ø45mm×93 mm) |
| Mounting bolt pattern | 5.1″×3.78″ (129mm×96 mm) 4-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
|
|
12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 7.6(2.3) |
| 0 | 11.6(3.6) | 12.5(3.8) | 20 | 15 | 2 | 3642(1652) | 17.0(5.2) |
| 1500(680) | 9.2(2.8) | 10.5(3.2) | 70 | 40 | 3 | 3060(1388) | 27.0(8.3) |
| 2500(1134) | 7.8 (2.4) | 8.5(2.6) | 100 | 65 | 4 | 2638(1196) | 38.6(11.8) |
| 3500(1588) | 6.6(2.0) | 7.2(2.2) | 140 | 80 | 5 | 2254(1023) | 47.6(14.5) |
| 4500(2041) | 4.9(1.5) | 5.9(1.8) | 200 | 130 |
|
|
|

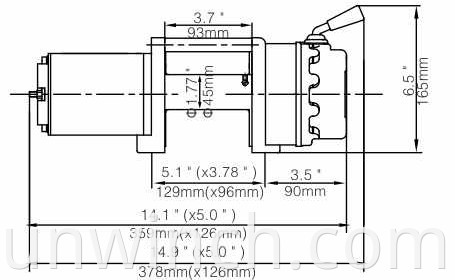

| ITEM | EWX4500D | EWX4500A | EWX4500U |
| Overall dimensions | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ |
| (L×W×H) | 378m×126mm ×165mm | 378m×126mm ×165mm | 378m×126mm ×165mm |
| Net weight (Ibs) | 27.8 | 28.7 | 28.7 |
| (kgs) | 12.6 | 13.0 | 13.0 |
Dimensi Keseluruhan : 14.9″x5.0″x6.5″
(L x W x T) 378mm x 126mm x 165mm
Berat Bersih : 12.6 KGS
Kategori produk : Win Atv Dan Utv > Atv Winch
