Model No.: EWX2000A
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Port: Shanghai,Ningbo
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW

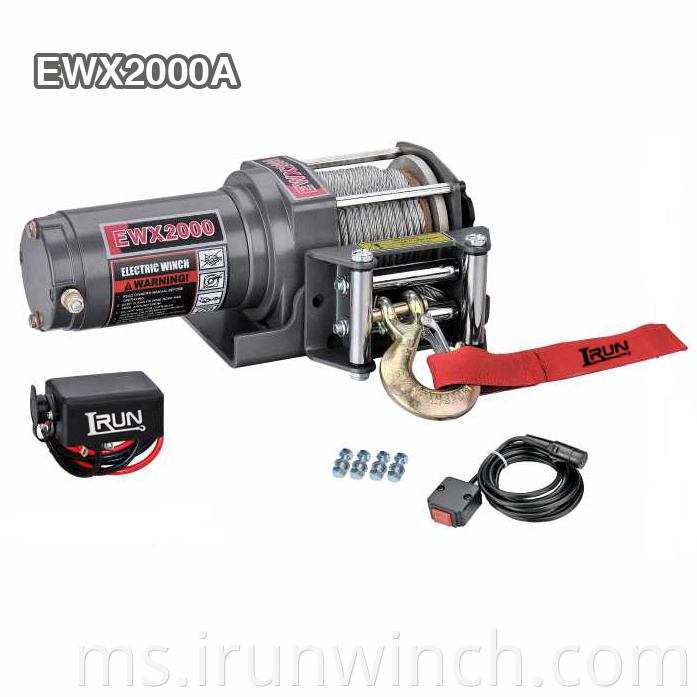

Win EWX2000A ATV.
Jika anda sedang mencari win ATV yang murah, mudah dikendalikan dan tahan lama, lebih baik anda fikirkan untuk memperoleh satu pek Win ATV seberat 2000 paun. Win ATV 2000 Lb ialah definisi sebenar teknologi win termaju.
Sistem brek yang diautomasikan dan digabungkan dalam win ATV kami. Selain sistem brek, win juga boleh dikawal dari jauh dengan sambungan wayarles. Kotak kawalan win ATV 2000 Lb boleh ditanggalkan menjadikan kawalannya lebih mudah.
Ciri-ciri:
1.) Gear pengurang keluli penuh
2) Tindakan brek automatik
3.) Klac kili percuma
4.) Pemacu kuasa DC 12V atau DC 24V pilihan
5.) Kawalan suis kerja arus tinggi secara langsung
6.) Kawalan suis Hendal ATV
7.)Pemasangan boleh tanggal kotak kawalan pilihan
8.) Kotak kawalan penetapan berasingan pilihan
9.) Kawalan jauh melalui kotak contorl dan suis
10.) Kawalan remoto wayarles tersedia
EWX2000
| SPECIFICATION |
|
| Rated line pull | 2000 lbs (907 kgs) |
| Motor: permanent magnet | 12V:Input: 1.7kW / 2.3hp; Output: 0.6kW / 0.8hp |
|
|
24V:Input: 1.9kW / 2.6hp; Output: 0.7kW / 0.9hp |
| Gear reduction ratio | 153:1 |
| Cable (Dia.× L) | Ø5/32″×49′(Ø4mm×15m) |
| Drum size (Dia.× L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
|
|
12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
|
|
|
|
|
|
6 | 940(426) | 49.2(15.0) |
| ITEM | EWX2000D | EWX2000A | EWX2000U |
| Overall dimensions | 11.5″×4.5″×4.3″ | 11.5″×4.5″×4.3″ | 12.1″×4.5″×5.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 17.8 | 18.6 | 18.4 |
| (kgs) | 8.1 | 8.5 | 8.4 |

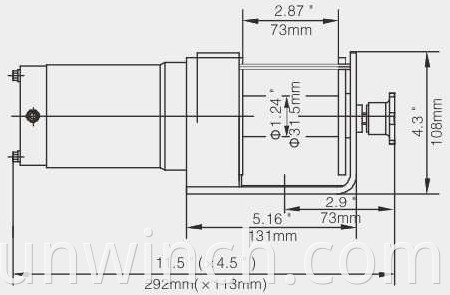

Dimensi keseluruhan: 11.5″x4.5″x4.3″
(PxLxT) 292x113x108mm
Berat Bersih: 8.5KGS
Kategori produk : Win Atv Dan Utv > Atv Winch
