Model No.: HWX8000A
Jenama: TEMPAHAN OEM BOLEH DITERIMA
Sumber Kuasa: Hidraulik
Permohonan: ATV / UTV, AUTO
Pembungkusan: KARTON EKSPORT ATAU KES KAYU
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

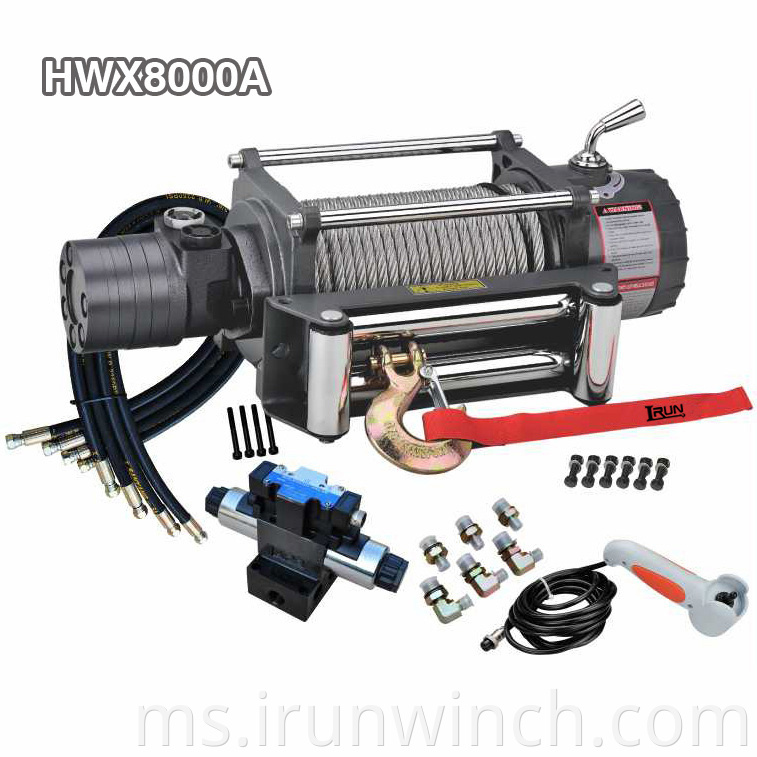

Win hidraulik 4x4 Offroad 8000 lbs Hidraulik Winch No. Item HWX8000A kami disertakan dengan injap elektrik dan hos minyak getah.
Win Hidraulik kami memberikan anda penyelesaian tugas berterusan untuk keperluan win anda. Direka bentuk dengan komersil yang paling bijak
minda applicaitonin, semua win menampilkan kebolehpercayaan sepenuhnya untuk tarikan berterusan dengan tangan.
Ciri-ciri:
1. Gear pengurang stell penuh
2. Motor kerja stabil aliran minyak rendah
3. Pemacu pam kuasa stereng kenderaan yang sedia ada
4. Klac cincin geaed gelongsor
5. Tindakan brek kon skru automatik
6. Klac kili percuma
7. Pemacu kuasa DC 12V atau DC 24V pilihan
8. Kawalan jauh wayar
9. Alat kawalan jauh wayarles tersedia
10. SWR tensioner tersedia
11. Tidak boleh menggunakannya berfungsi sebagai lif
HWX8000U/A
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 8.5Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
2.0(290.1) |
1.3(5) |
1.6(0.5) |
|
4000(1814) |
3.6(522.1) |
2.6(10) |
3.6(1.1) |
|
6000(2722) |
6.5(942.7) |
5.3(20) |
7.5(2.3) |
|
8000(3629) |
8.5(1232.8) |
9.2(35) |
12.8(3.9) |
|
11.9(45) |
17.4(5.3) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
|
1 |
8000(3629) |
20.0(6.1) |
|
|
2 |
6529(2962) |
44.3(13.5) |
|
|
3 |
5515(2502) |
72.2(22.0) |
|
|
4 |
4773(2165) |
95.1(29.0) |
| ITEM | HWX8000A | HWX8000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 87.5 | 87 | |
| (kgs) | 39.7 | 39.5 |

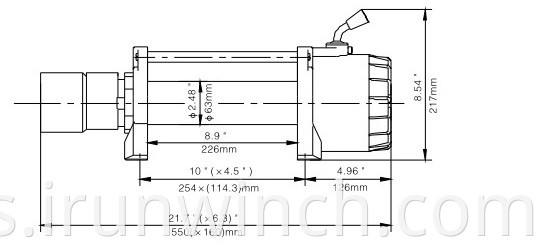

Dimensi Keseluruhan 21.6″ x 6.3″ x 8.54″
(L x W x T) 550mm x 160mm x 217mm
Berat Bersih 39.7 KGS
Kategori produk : Win Hidraulik 4wd > Win 4x4 Hidraulik
