Model No.: EWX8000U
Jenama: TEMPAHAN OEM BOLEH DITERIMA
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Voltan: 24V, 12V
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

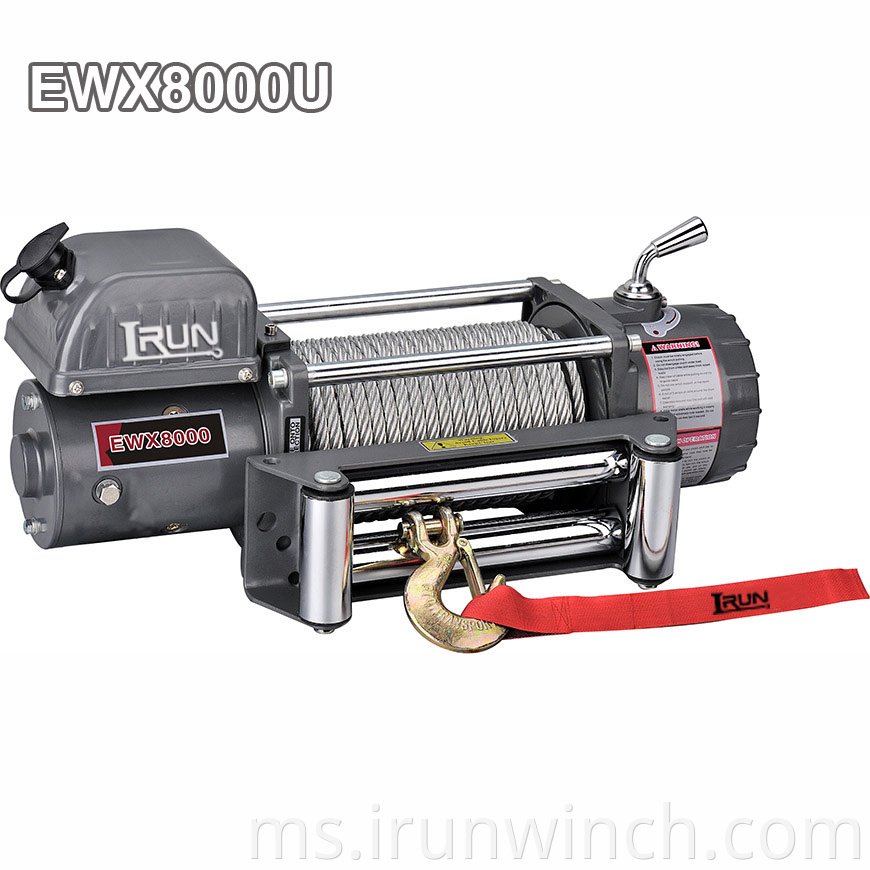

EWX8000U
8000 lbs Recovery Electric Winch memasang kotak kawalan pada motor win. Ia adalah pilihan ideal winch 8000 paun dengan keperluan prestasi tinggi. Kerana Ia tergolong dalam Siri EWX Winch Pemulihan kami. Siri EWX yang menampilkan kecekapan sempurna, tarikan yang stabil dan reka bentuk padat. Win Siri ini mempunyai reka bentuk paten sendiri pengurang gear planet tiga peringkat menjadikan win mempunyai kecekapan penghantaran yang melampau dan operasi keselamatan yang boleh dipercayai.
Ciri-ciri:
1. gear pengurang keluli penuh
2. Paten pengurang gear planet tiga peringkat
3. Klac kili percuma
4. Tindakan brek kon skru automatik
5. Motor Luka Siri Pendek
6. Pemacu kuasa DC 12V atau DC 24V pilihan
7. Alat kawalan jauh melalui kotak kawalan dan suis
8. Kawalan jauh wayarles tersedia jenis F tetap dalam kotak kawalan
9. SWR tensioner tersedia
EWX8000U
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor:Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.0kW / 2.7hp |
| 24V:Input: 5.5kW / 7.4hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX8000U | EWX8000S | EWX8000F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 540mm×160mm×254mm | 540mm×160mm×283mm | 540mm×160mm×251mm |
| Net weight (Ibs) | 71.9 | 77.3 | 82.1 |
| (kgs) | 32.6 | 35.1 | 37.2 |
Dimensi Keseluruhan： 21.3″ x 6.3″ x 10.0″
(L x W x T) 540mm x 160mm x 254mm
Berat Bersih： 32.6 KGS
Kategori produk : Win Elektrik > Win Pemulihan
