Model No.: EWP4500A
Jenama: TEMPAHAN OEM BOLEH DITERIMA
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Voltan: 24V, 12V
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

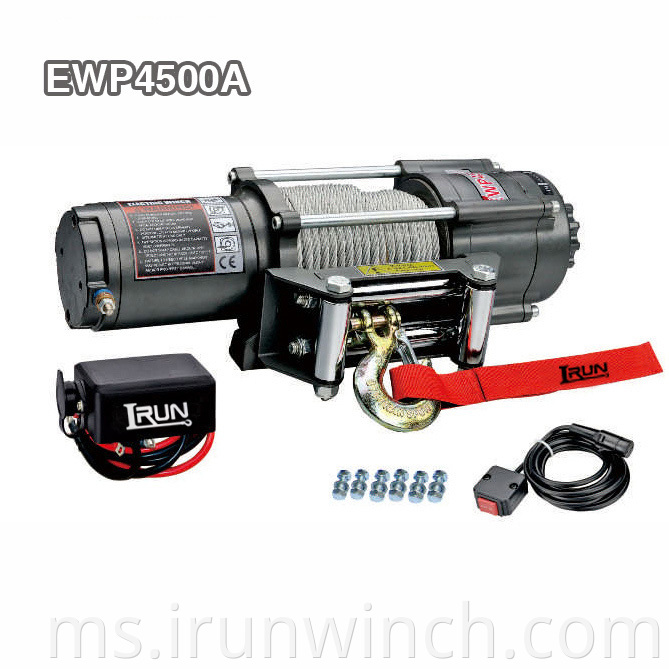

Win UTV Elektrik 4500 lbs Item No.EWP4500A
Ciri-ciri:
1. Gear pengurang keluli percuma
2. Struktur klac paten
3. Klac kili percuma
4. Tindakan brek kon skru automatik
5. Pemacu kuasa DC 12V atau DC 24V pilihan
6. Kawalan suis kerja crrunt tinggi secara langsung
7. Kawalan suis bar hendal ATV
8. Pembetulan boleh tanggal kotak kawalan pilihan
9. Kotak kawalan penetapan berasingan pilihan
10. Alat kawalan jauh melalui kotak kawalan dan suis
11. Alat kawalan jauh wayarles tersedia
EWP4500
| SPECIFICATION | |
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet | 12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW/1.4hp |
| 24V:Input: 2.6kW / 3.5hp; Output: 1.2kW/1.5hp | |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 15/64″×47.6′ (Ø6mm×14.5m) |
| Drum size (Dia.× L) | Ø 2.0″×4.9″ (Ø50.4mm×125mm) |
| Mounting bolt pattern | 6.6″×3″ (168mm×76.2mm)4-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 12.2(3.7) | |
| 0 | 12.8(3.9) | 13.2(4.0) | 28 | 14 | 2 | 3841(1742) | 26.2(8.0) |
| 1000(454) | 9.8(3.0) | 10.9(3.3) | 80 | 50 | 3 | 3310(1501) | 41.9(12.8) |
| 2000(907) | 8.5(2.6) | 9.4(2.9) | 120 | 70 | 4 | 2907 (1319) | 47.6(14.5) |
| 3000(1361) | 6.9(2.1) | 7.6(2.3) | 160 | 95 | |||
| 4500(2041) | 4.6(1.4) | 5.5(1.6) | 220 | 110 | |||
| ITEM | EWP4500D | EWP4500A | EWP4500U |
| Overall dimensions | 16.38″×4.92″×4.85″ | 16.38″×4.92″×4.85″ | 16.46″×4.92″×6.6″ |
| (L×W×H) | 416mm ×125mm ×123 mm | 416mm ×125mm ×123 mm | 418mm ×125mm ×168 mm |
| Net weight (Ibs) | 33.3 | 34.2 | 34.2 |
| (kgs) | 15.1 | 15.5 | 15.5 |

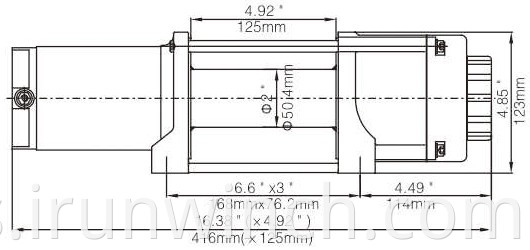

Dimensi keseluruhan: 16.38″x4.92″x4.85″
(PxLxT) 416mmx125mmx134mm
Berat Bersih: 15.5 KGS
Kategori produk : Win Atv Dan Utv > Utv Win
