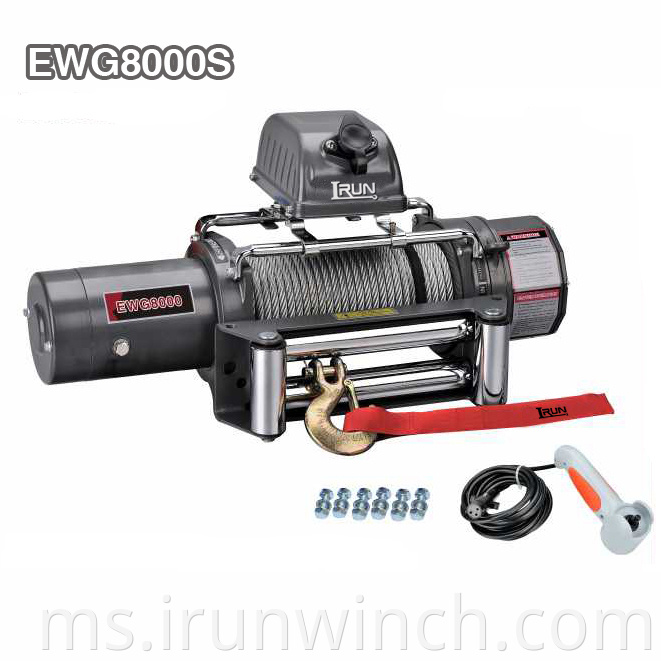

Model No.: EWG8000S
Jenama: TEMPAHAN OEM BOLEH DITERIMA
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Voltan: 24V, 12V
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Nombor Item EWG8000U 8000 lbs Elektrik Win untuk Suv atau Jeep ialah produk poineer win pemulihan 4×4 Motor Wound Siri kami. Ia mendapat reputasi yang baik daripada pelanggan seluruh dunia kerana kualiti yang stabil, prestasi yang baik dan harga yang kompetitif disebabkan oleh masa yang lama kami mendesak untuk membersihkan produk dan mengawal kos pengeluaran.
Ciri-ciri:
1. Klac kili percuma
2. Tindakan brek kon skru automatik
3. Pemacu kuasa DC 12V atau DC 24V pilihan
4. Motor Luka Bersiri
5. Alat kawalan jauh melalui kotak kawalan dan suis
6. Kawalan jauh wayarles tersedia jenis F tetap dalam kotak kawalan
7. SWR tensioner tersedia
EWG8000
| SPECIFICATION |
|
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: series wound |
12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp
24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
|
|
|
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
|
|
12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 |
|
|
|
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 |
|
|
|

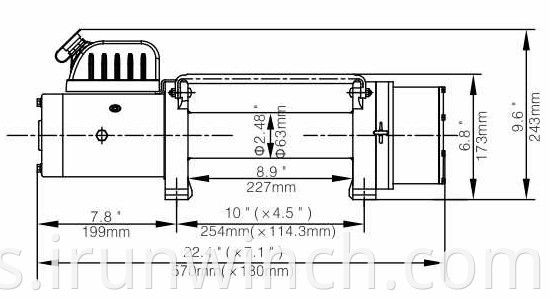

| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
72.5
32.8 |
72.9
33.1 |
73.8
33.5 |
| (kgs) |
Dimensi Keseluruhan： 22.4″ x 7.1″ x 8.9″
(L x W x T) 570mm x 180mm x 225mm
Berat Bersih： 32.8 KGS
Kategori produk : Win Elektrik > Win 4x4
