Model No.: EWK5000U
Jenama: Pesanan OEM boleh diterima
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Voltan: 24V, 12V
Pembungkusan: Karton eksport
Pengangkutan: Ocean,Air
Tempat asal: China
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

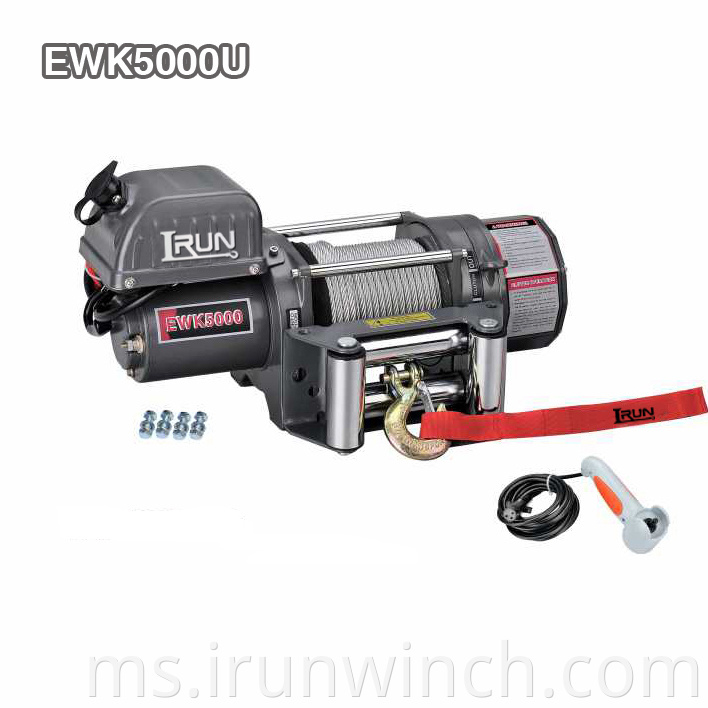

EWK5000U
5000 lbs winch pemulihan elektrik dengan kotak kawalan yang terikat pada item bar winch no. EWK5000S. Ia adalah pilihan bijak anda pada prestasi tinggi 8000 pound Winch Recovery Electric. Ia sebagai 5000 pound yang menonjolkan siri EWK dengan kelebihan ini kecekapan sempurna, reka bentuk menarik dan kompak yang stabil. Win siri ini mempunyai Reka Bentuk Paten Design Tiga Peringkat Reducer Gear Planet yang Membuat Winches menjadi kecekapan penghantaran yang melampau dan operasi keselamatan yang boleh dipercayai
Ciri -ciri:
1. Peralatan Reducer Keluli Penuh
2. Paten Tiga Peringkat Planet Planet Reducer
3. Klac spooling percuma
4. Tindakan brek kerucut skru automatik
5. Motor luka siri pendek
6. DC 12V atau DC 24V Power Drive Pilihan
7. Kawalan jauh melalui kotak kawalan dan suis
8. Kawalan Jauh Tanpa Wayar Tersedia F Jenis Tetap Di Kotak Kawalan
9. Tensioner SWR tersedia
EWK5000
| SPECIFICATION | |
| Rated line pull | 5000 lbs (2268 kgs) |
| Motor: permanent magnet | 12V:Input: 2.8kW /3.8hp; Output: 1.4kW / 1.9hp
24V:Input: 4.3kW / 5.8hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø1/4 “×79 ‘ (Ø6.4mm×24m) |
| Drum size (Dia.× L) | Ø2.48 “×5.5 ” (Ø63mm×139 mm) |
| Mounting bolt pattern | 6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | 5 | 5000(2268) | 14.8(4.5) |
| ITEM | EWK5000U | EWK5000S | EWK5000F |
| Overall dimensions | 18.4″×7.1″×9.6″
466mm×180mm×243mm |
17.5″×7.1″×11.7″
444mm×180mm×297mm |
17.5″×7.1″×10.6″
444mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 47.8
21.7 |
48.2
21.9 |
49.8
22.6 |
| (kgs) |
Dimensi Keseluruhan: 18.4 "x 7.1" x 9.6 ″
(L x W x H) 466mm x 180mm x 243mm
Berat bersih: 21.7 kg
Kategori produk : Win Elektrik > Win 4x4
