Model No.: EWG10000S
Jenama: PESANAN OEM BOLEH DITERIMA
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Voltan: 24V, 12V
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

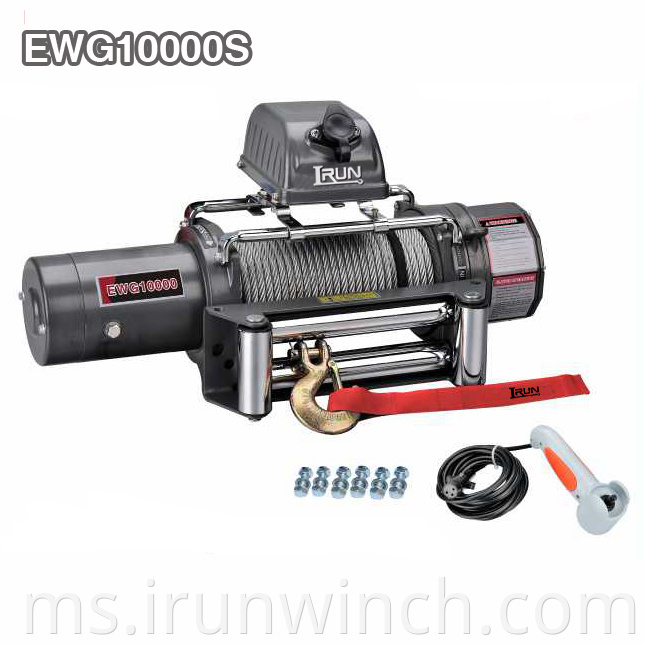

EWG10000S
10000 lbs Electric Winch Item No.EWG10000S sebagai salah satu siri winch tradisional yang menerima banyak pujian daripada pelanggan seluruh dunia kerana prestasinya yang baik, harga yang berpatutan dan kualiti yang stabil. Kami telah menumpukan untuk menambah baik produk dan mengawal kos pengeluaran.
Ciri-ciri:
1. Klac kili percuma
2. Tindakan brek kon skru automatik
3. Pemacu kuasa DC 12V atau DC 24V pilihan
4. Motor Luka Bersiri
5. Alat kawalan jauh melalui kotak kawalan dan suis
6. Kawalan jauh wayarles tersedia jenis F tetap dalam kotak kawalan
7. SWR tensioner tersedia
EWG10000S
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound |
12V:Input: 3.6kW / 4.8hp; Output: 2.7kW / 3.6hp
24V:Input: 4.8kW / 6.4hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.0 (5.5) | |
| 0 | 17.1 (5.2) | 23.0(7.0) | 80 | 50 | 2 | 8000 (3629) | 39.4 (12.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 3 | 6600(2994) | 64.0(19.5) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 210 | 145 | 4 | 5600(2540) | 85.3(26.0) |
| 8000(3629) | 5.6 (1.7) | 6.9(2.1) | 250 | 170 | |||
| 10000(4536) | 4.6 (1.4) | 5.9(1.8) | 300 | 200 | |||

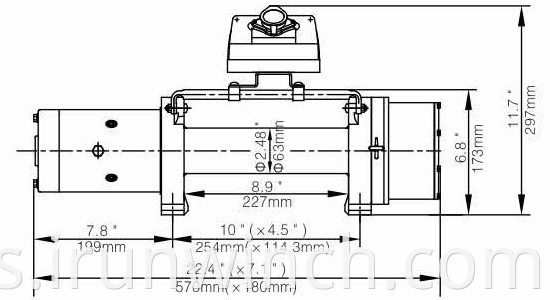

| ITEM | EWG10000U | EWG10000S | EWG10000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
73.8
33.8 |
75.0
34.0 |
75.3
34.2 |
| (kgs) |
Dimensi Keseluruhan： 22.4″ x 7.1″ x 11.3″
(L x W x T) 570mm x 180mm x 286mm
Berat Bersih： 34 KGS
Kategori produk : Win Elektrik > Win 4x4
