Model No.: EWG8000F
Jenama: TEMPAHAN OEM BOLEH DITERIMA
Sumber Kuasa: Elektrik
Permohonan: AUTO
Voltan: 24V, 12V
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: SHANGHAI,NINGBO
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

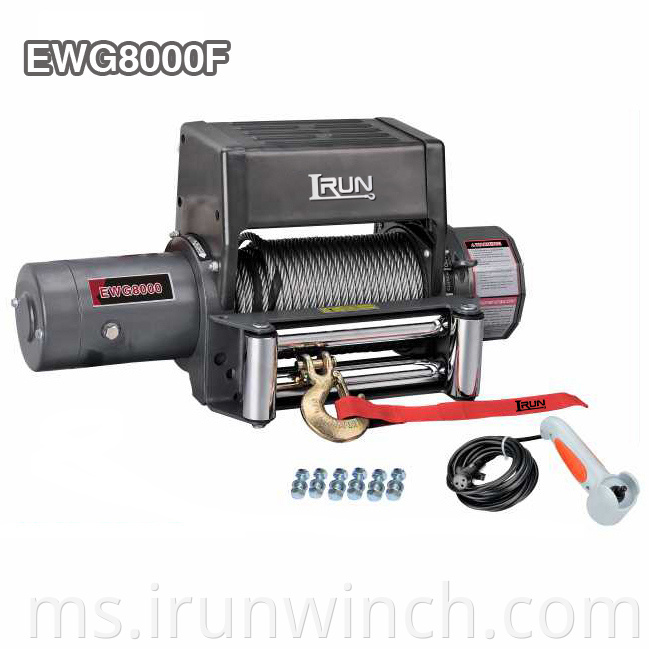

Win Elektrik 4×4 8000lbs Untuk Suv atau Jeep
EWG8000F
Win Elektrik 8000 lbs Item No.EWG8000F Hebat Untuk Suv atau Jeep Dengan Kotak kawalan Tegak dan Motor Luka Siri. Ia merupakan wakil kami bagi produk perintis win 4×4 pemulihan kami. kualiti yang stabil, prestasi yang baik dan ciri harga yang menarik memenangi pujian hebat daripada pelanggan seluruh dunia.
Ciri-ciri:
1. Klac kili percuma
2. Tindakan brek kon skru automatik
3. Pemacu kuasa DC 12V atau DC 24V pilihan
4. Motor Luka Bersiri
5. Alat kawalan jauh melalui kotak kawalan dan suis
6. Kawalan jauh wayarles tersedia jenis F tetap dalam kotak kawalan
7. SWR tensioner tersedia
EWG8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: Series Wound |
12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp
24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 | |||
| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
72.5
32.8 |
72.9
33.1 |
73.8
33.5 |
| (kgs) |
Dimensi Keseluruhan： 22.4″ x 7.1″ x 10.6″
(L x W x T) 570mm x 180mm x 270mm
Berat Bersih： 33.5 KGS
Kategori produk : Win Elektrik > Win 4x4
